The PowerCLI script takes Function Set-ESXiDPC from https://github.com/lamw/vghetto-scripts/blob/master/powershell/ESXiDisableProtocolConfiguration.ps1 (via Cluster) but makes sure the single ESXi host in is maintenance mode. The script was tested on ESXi 6.0 + 6.5 with a 6.5 VCSA that is TLS 1.2 only.
PowerCLI – Disable TLS 1.0 1.1 SSLV3 on ESXi 6.x while in maintenance mode
Download Win32 OpenSSL v1.1.0g Light https://slproweb.com/products/Win32OpenSSL.html
Test TCP port 443 over TLS 1.0 and 1.1 before and after the reboot (yes, there are other ports that can be tested)

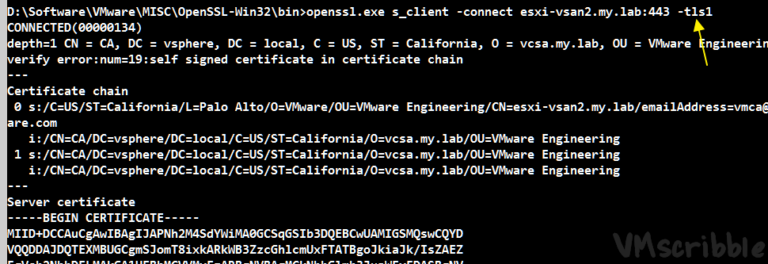

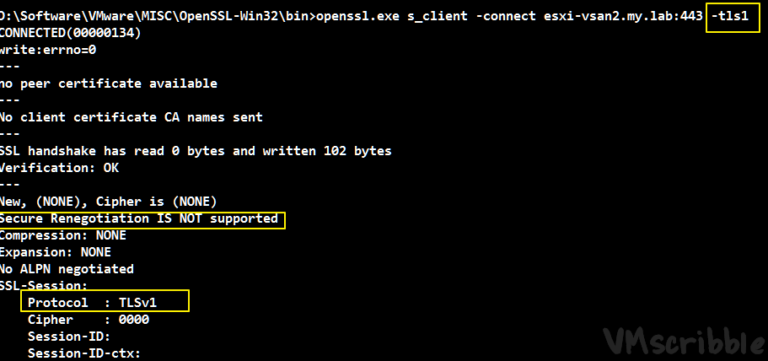

openssl.exe s_client -connect esxi-vsan1.my.lab:443 -tls1

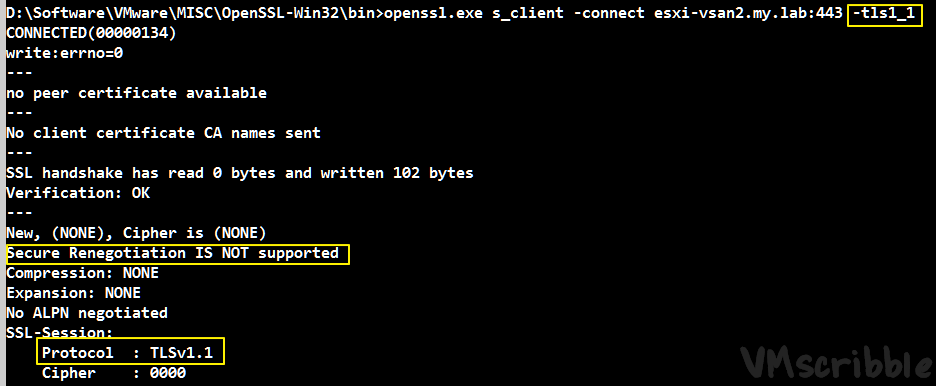

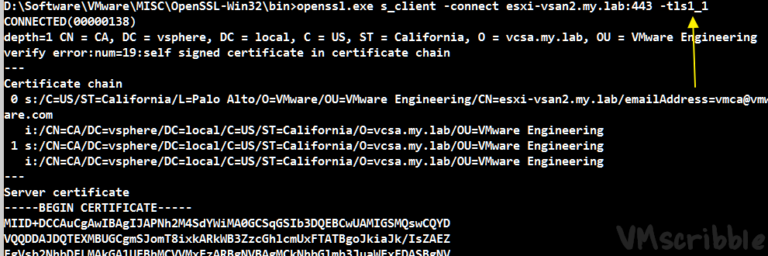

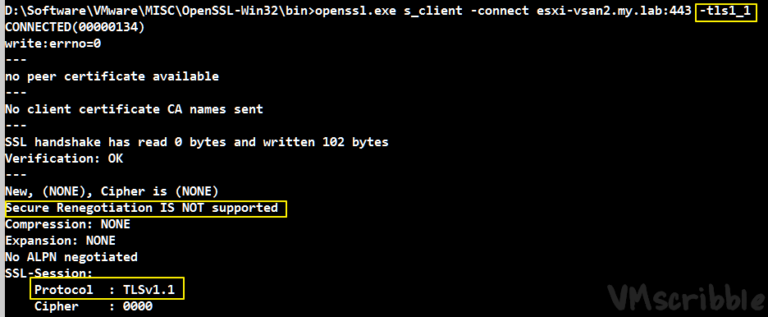

openssl.exe s_client -connect esxi-vsan1.my.lab:443 -tls1_1
<#
https://vmscribble.com PowerCLI 6.5.4
Pulled Nov 29, 2017 https://github.com/lamw/vghetto-scripts/blob/master/powershell/ESXiDisableProtocolConfiguration.ps1 The PowerCLI script takes Function Set-ESXiDPC (via Cluster) but makes sure the single ESXi host in is maintenance mode.
The script was tested on ESXi 6.0 + 6.5 with a 6.5 VCSA that is TLS 1.2 only.
#>
# What is the vCenter and ESXI FQDN?
$vCenter = Read-Host "Enter the vCenter Name"
$esxihostname = Read-Host "Enter the FQDN of the ESXi host that is in maintenance mode"
# Connect to your vCenter
Connect-VIServer $vCenter
Function Set-ESXiDPC {
<#
.NOTES
===========================================================================
Created by: William Lam
Organization: VMware
Blog: www.virtuallyghetto.com
Twitter: @lamw
===========================================================================
.DESCRIPTION
This function configures the TLS protocols to disable for all
ESXi hosts within a vSphere Cluster
.SYNOPSIS
Configures the disabled TLS protocols for Hostd, Authd, sfcbd & VSANVP/IOFilter
.PARAMETER Cluster
The name of the vSphere Cluster
.EXAMPLE
Set-ESXiDPC -Cluster VSAN-Cluster -TLS1 $true -TLS1_1 $true -TLS1_2 $false -SSLV3 $true
#>
param(
[Parameter(Mandatory=$true)][Boolean]$TLS1,
[Parameter(Mandatory=$true)][Boolean]$TLS1_1,
[Parameter(Mandatory=$true)][Boolean]$TLS1_2,
[Parameter(Mandatory=$true)][Boolean]$SSLV3
)
Function UpdateSFCBConfig {
param(
[VMware.VimAutomation.ViCore.Impl.V1.Inventory.InventoryItemImpl]$VMHost
)
$url = "https://$vmhost/host/sfcb.cfg"
$sessionManager = Get-View ($global:DefaultVIServer.ExtensionData.Content.sessionManager)
$spec = New-Object VMware.Vim.SessionManagerHttpServiceRequestSpec
$spec.Method = "httpGet"
$spec.Url = $url
$ticket = $sessionManager.AcquireGenericServiceTicket($spec)
$websession = New-Object Microsoft.PowerShell.Commands.WebRequestSession
$cookie = New-Object System.Net.Cookie
$cookie.Name = "vmware_cgi_ticket"
$cookie.Value = $ticket.id
$cookie.Domain = $vmhost.name
$websession.Cookies.Add($cookie)
$result = Invoke-WebRequest -Uri $url -WebSession $websession
$sfcbConf = $result.content
# Download the current sfcb.cfg and ignore existing TLS configuration
$sfcbResults = ""
foreach ($line in $sfcbConf.Split("`n")) {
if($line -notmatch "enableTLSv1:" -and $line -notmatch "enableTLSv1_1:" -and $line -notmatch "enableTLSv1_2:" -and $line -ne "") {
$sfcbResults+="$line`n"
}
}
# Append the TLS protocols based on user input to the configuration file
$sfcbResults+="enableTLSv1: " + (!$TLS1).ToString().ToLower() + "`n"
$sfcbResults+="enableTLSv1_1: " + (!$TLS1_1).ToString().ToLower() + "`n"
$sfcbResults+="enableTLSv1_2: " + (!$TLS1_2).ToString().ToLower() +"`n"
# Create HTTP PUT spec
$spec.Method = "httpPut"
$spec.Url = $url
$ticket = $sessionManager.AcquireGenericServiceTicket($spec)
# Upload sfcb.cfg back to ESXi host
$websession = New-Object Microsoft.PowerShell.Commands.WebRequestSession
$cookie.Name = "vmware_cgi_ticket"
$cookie.Value = $ticket.id
$cookie.Domain = $vmhost.name
$websession.Cookies.Add($cookie)
$result = Invoke-WebRequest -Uri $url -WebSession $websession -Body $sfcbResults -Method Put -ContentType "plain/text"
if($result.StatusCode -eq 200) {
Write-Host "`tSuccessfully updated sfcb.cfg file"
} else {
Write-Host "Failed to upload sfcb.cfg file"
break
}
}
# Build TLS string based on user input for setting ESXi Advanced Settings
if($TLS1 -and $TLS1_1 -and $TLS1_2 -and $SSLV3) {
Write-Host -ForegroundColor Red "Error: You must at least enable one of the TLS protocols"
break
}
$tlsString = @()
if($TLS1) { $tlsString += "tlsv1" }
if($TLS1_1) { $tlsString += "tlsv1.1" }
if($TLS1_2) { $tlsString += "tlsv1.2" }
if($SSLV3) { $tlsString += "sslv3" }
$tlsString = $tlsString -join ","
Write-Host "`nDisabling the following TLS protocols: $tlsString on ESXi host ...`n"
$vmhost = Get-VMHost -Name $esxihostname
if($vmhost.State -eq "Maintenance"){
if( ($vmhost.ApiVersion -eq "6.0" -and (Get-AdvancedSetting -Entity $vmhost -Name "Misc.HostAgentUpdateLevel").value -eq "3") -or ($vmhost.ApiVersion -eq "6.5") ) {
Write-Host "Updating $vmhost ..."
Write-Host "`tUpdating sfcb.cfg ..."
UpdateSFCBConfig -vmhost $vmhost
if($vmhost.ApiVersion -eq "6.0") {
Write-Host "`tUpdating UserVars.ESXiRhttpproxyDisabledProtocols ..."
Get-AdvancedSetting -Entity $vmhost -Name "UserVars.ESXiRhttpproxyDisabledProtocols" | Set-AdvancedSetting -Value $tlsString -Confirm:$false | Out-Null
Write-Host "`tUpdating UserVars.VMAuthdDisabledProtocols ..."
Get-AdvancedSetting -Entity $vmhost -Name "UserVars.VMAuthdDisabledProtocols" | Set-AdvancedSetting -Value $tlsString -Confirm:$false | Out-Null
}
Write-Host "`tUpdating UserVars.ESXiVPsDisabledProtocols ..."
Get-AdvancedSetting -Entity $vmhost -Name "UserVars.ESXiVPsDisabledProtocols" | Set-AdvancedSetting -Value $tlsString -Confirm:$false | Out-Null
Write-Host " "

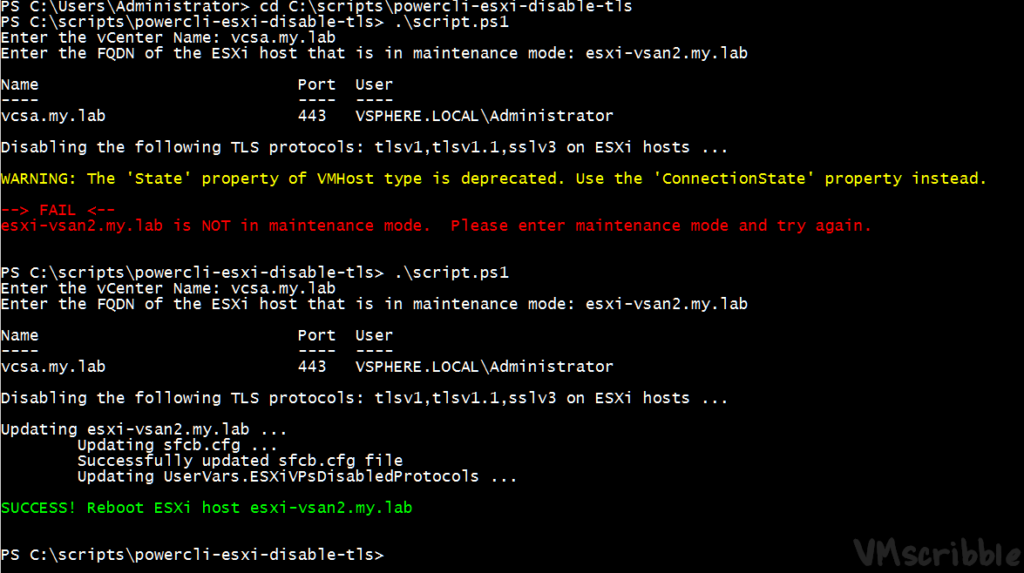

Write-Host "SUCCESS! Reboot ESXi host $esxihostname " -ForegroundColor "Green"
}
}
else
{
Write-Host " "
Write-Host "--> FAIL <--" -ForegroundColor "Red"
Write-Host ($vmhost.Name + " " + "is NOT in maintenance mode. Please enter maintenance mode and try again.") -ForegroundColor "Red"
}
}
# Disable TLS 1.0 1.1 & SSL V3
Set-ESXiDPC -TLS1 $true -TLS1_1 $true -TLS1_2 $false -SSLV3 $true
# Disconnect from the vCenter
Disconnect-VIServer $vCenter -Confirm:$false
- Setup
-
The PowerCLI script takes Function Set-ESXiDPC from https://github.com/lamw/vghetto-scripts/blob/master/powershell/ESXiDisableProtocolConfiguration.ps1 (via Cluster) but makes sure the single ESXi host in is maintenance mode. The script was tested on ESXi 6.0 + 6.5 with a 6.5 VCSA that is TLS 1.2 only.
- OpenSSL Test
-
Download Win32 OpenSSL v1.1.0g Light https://slproweb.com/products/Win32OpenSSL.html
Test TCP port 443 over TLS 1.0 and 1.1 before and after the reboot (yes, there are other ports that can be tested)
openssl.exe s_client -connect esxi-vsan1.my.lab:443 -tls1
openssl.exe s_client -connect esxi-vsan1.my.lab:443 -tls1_1 - PowerCLI Script
-
