# Found https://vmscribble.com/powercli/create-a-vds-port-group-for-nsxv2t-bridging-powercli-script
# Tested with VMware PowerCLI 12.4.0 and VCSA 7.0.3
# Setup Variables
$vCenter = Read-Host "Enter the FQDN of the vCenter"
$VDSName = Read-Host "Enter the Distributed Switch Name"
$DVPortgroupName = Read-Host "Enter the Port Group Name to Create"
# Have the user confirm to run the script.
Write-host " "
Read-Host "
Hit ENTER to:
- Create a new Port Group Name $DVPortgroupName on VDS $VDSName

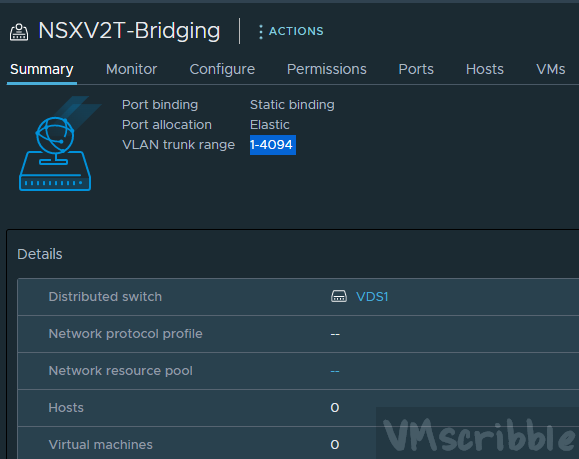

- VLAN Range 1-4094
- Load Balancing based on MAC hash

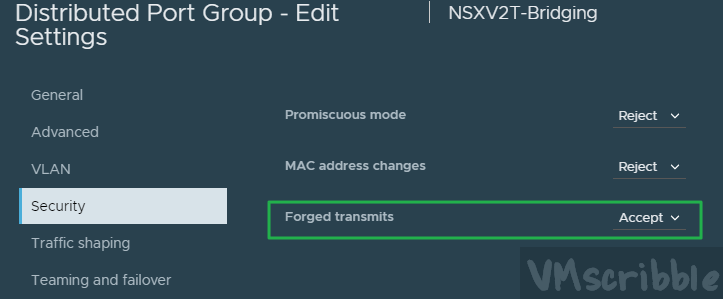

- Forged Transmits to Accept
- Native MAC Learning Enabled
"
Write-host " "
# Connect to vCenter
Connect-VIServer $vCenter | out-null
# Thanks for both Functions Get-MacLearn and Set-MacLearn
# https://github.com/lamw/vmware-scripts/blob/master/powershell/MacLearn.ps1
# https://williamlam.com/2018/04/native-mac-learning-in-vsphere-6-7-removes-the-need-for-promiscuous-mode-for-nested-esxi.html
Function Get-MacLearn {
<#
.NOTES
===========================================================================
Created by: William Lam
Organization: VMware
Blog: www.williamlam.com
Twitter: @lamw
===========================================================================
.DESCRIPTION
This function retrieves both the legacy security policies as well as the new
MAC Learning feature and the new security policies which also live under this
property which was introduced in vSphere 6.7
.PARAMETER DVPortgroupName
The name of Distributed Virtual Portgroup(s)
.EXAMPLE
Get-MacLearn -DVPortgroupName @("Nested-01-DVPG")
#>
param(
[Parameter(Mandatory=$true)][String[]]$DVPortgroupName
)
$minSwitchVersion = "6.6.0"
foreach ($dvpgname in $DVPortgroupName) {
$dvpg = Get-VDPortgroup -Name $dvpgname -ErrorAction SilentlyContinue
$switchVersion = ($dvpg | Get-VDSwitch).Version
if($dvpg -and [version]$switchVersion -ge [version]$minSwitchVersion) {
$securityPolicy = $dvpg.ExtensionData.Config.DefaultPortConfig.SecurityPolicy
$macMgmtPolicy = $dvpg.ExtensionData.Config.DefaultPortConfig.MacManagementPolicy
$securityPolicyResults = [pscustomobject] @{
DVPortgroup = $dvpgname;
MacLearning = $macMgmtPolicy.MacLearningPolicy.Enabled;
NewAllowPromiscuous = $macMgmtPolicy.AllowPromiscuous;
NewForgedTransmits = $macMgmtPolicy.ForgedTransmits;
NewMacChanges = $macMgmtPolicy.MacChanges;
Limit = $macMgmtPolicy.MacLearningPolicy.Limit
LimitPolicy = $macMgmtPolicy.MacLearningPolicy.limitPolicy
LegacyAllowPromiscuous = $securityPolicy.AllowPromiscuous.Value;
LegacyForgedTransmits = $securityPolicy.ForgedTransmits.Value;
LegacyMacChanges = $securityPolicy.MacChanges.Value;
}
$securityPolicyResults
} else {
Write-Host -ForegroundColor Red "Unable to find DVPortgroup $dvpgname or VDS is not running $minSwitchVersion or later"
break
}
}
}
Function Set-MacLearn {
<#
.NOTES
===========================================================================
Created by: William Lam
Organization: VMware
Blog: www.williamlam.com
Twitter: @lamw
===========================================================================
.DESCRIPTION
This function allows you to manage the new MAC Learning capablitites in
vSphere 6.7 along with the updated security policies.
.PARAMETER DVPortgroupName
The name of Distributed Virtual Portgroup(s)
.PARAMETER EnableMacLearn
Boolean to enable/disable MAC Learn
.PARAMETER EnablePromiscuous
Boolean to enable/disable the new Prom. Mode property
.PARAMETER EnableForgedTransmit
Boolean to enable/disable the Forged Transmit property
.PARAMETER EnableMacChange
Boolean to enable/disable the MAC Address change property
.PARAMETER AllowUnicastFlooding
Boolean to enable/disable Unicast Flooding (Default $true)
.PARAMETER Limit
Define the maximum number of learned MAC Address, maximum is 4096 (default 4096)
.PARAMETER LimitPolicy
Define the policy (DROP/ALLOW) when max learned MAC Address limit is reached (default DROP)
.EXAMPLE
Set-MacLearn -DVPortgroupName @("Nested-01-DVPG") -EnableMacLearn $true -EnablePromiscuous $false -EnableForgedTransmit $true -EnableMacChange $false
#>
param(
[Parameter(Mandatory=$true)][String[]]$DVPortgroupName,
[Parameter(Mandatory=$true)][Boolean]$EnableMacLearn,
[Parameter(Mandatory=$true)][Boolean]$EnablePromiscuous,
[Parameter(Mandatory=$true)][Boolean]$EnableForgedTransmit,
[Parameter(Mandatory=$true)][Boolean]$EnableMacChange,
[Parameter(Mandatory=$false)][Boolean]$AllowUnicastFlooding=$true,
[Parameter(Mandatory=$false)][Int]$Limit=4096,
[Parameter(Mandatory=$false)][String]$LimitPolicy="DROP"
)
$minSwitchVersion = "6.6.0"
foreach ($dvpgname in $DVPortgroupName) {
$dvpg = Get-VDPortgroup -Name $dvpgname -ErrorAction SilentlyContinue
$switchVersion = ($dvpg | Get-VDSwitch).Version
if($dvpg -and [version]$switchVersion -ge [version]$minSwitchVersion) {
$originalSecurityPolicy = $dvpg.ExtensionData.Config.DefaultPortConfig.SecurityPolicy
$spec = New-Object VMware.Vim.DVPortgroupConfigSpec
$dvPortSetting = New-Object VMware.Vim.VMwareDVSPortSetting
$macMmgtSetting = New-Object VMware.Vim.DVSMacManagementPolicy
$macLearnSetting = New-Object VMware.Vim.DVSMacLearningPolicy
$macMmgtSetting.MacLearningPolicy = $macLearnSetting
$dvPortSetting.MacManagementPolicy = $macMmgtSetting
$spec.DefaultPortConfig = $dvPortSetting
$spec.ConfigVersion = $dvpg.ExtensionData.Config.ConfigVersion
if($EnableMacLearn) {
$macMmgtSetting.AllowPromiscuous = $EnablePromiscuous
$macMmgtSetting.ForgedTransmits = $EnableForgedTransmit
$macMmgtSetting.MacChanges = $EnableMacChange
$macLearnSetting.Enabled = $EnableMacLearn
$macLearnSetting.AllowUnicastFlooding = $AllowUnicastFlooding
$macLearnSetting.LimitPolicy = $LimitPolicy
$macLearnsetting.Limit = $Limit
Write-Host "Enabling MAC Learning on DVPortgroup: $dvpgname ..."
$task = $dvpg.ExtensionData.ReconfigureDVPortgroup_Task($spec)
$task1 = Get-Task -Id ("Task-$($task.value)")
$task1 | Wait-Task | Out-Null
} else {
$macMmgtSetting.AllowPromiscuous = $false
$macMmgtSetting.ForgedTransmits = $false
$macMmgtSetting.MacChanges = $false
$macLearnSetting.Enabled = $false
Write-Host "Disabling MAC Learning on DVPortgroup: $dvpgname ..."
$task = $dvpg.ExtensionData.ReconfigureDVPortgroup_Task($spec)
$task1 = Get-Task -Id ("Task-$($task.value)")
$task1 | Wait-Task | Out-Null
}
} else {
Write-Host -ForegroundColor Red "Unable to find DVPortgroup $dvpgname or VDS is not running $minSwitchVersion or later"
break
}
}
}
# Create the port group
Write-host " "
Write-host "Creating port group $DVPortgroupName" on VDS "$VDSName"
Get-VDSwitch -Name "$VDSName" | New-VDPortgroup -Name "$DVPortgroupName" -NumPorts 2 -VlanTrunkRange "1-4094"
Get-VDSwitch -Name "$VDSName" | Get-VDPortgroup $DVPortgroupName | Get-VDUplinkTeamingPolicy | Set-VDUplinkTeamingPolicy -LoadBalancingPolicy LoadBalanceSrcMac
Get-VDSwitch -Name "$VDSName" | Get-VDPortgroup $DVPortgroupName | Get-VDSecurityPolicy | Set-VDSecurityPolicy -ForgedTransmits $true
Write-host " "
# Enable MAC Learning
Set-MacLearn -DVPortgroupName @("$DVPortgroupName") -EnableMacLearn $true -EnablePromiscuous $false -EnableForgedTransmit $true -EnableMacChange $false
Write-host " "
# Display the settings of the new port group
Write-host " "
Write-host "Final specs of the port group $DVPortgroupName"
Get-MacLearn -DVPortgroupName @("$DVPortgroupName")
Write-host " "
# Disconnect vCenter
Disconnect-VIServer $vCenter -Confirm:$false
